ALLTOP MPPT Solar Inverter Hybrid Inverter Solar Battery Packwith Built in Wall
Short Description:
ALLTOP MPPT Solar Inverter Hybrid Inverter Solar Battery Packwith Built in Wall
ALLTOP SOLAR INVERTER
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
ALLTOP FEATURES
1.Pure sine wave solar inverter
2.Output power factor 1.0
3.Wifi&gprs available for ios and android
4.Built-in80a mppt solar charger
5.High pv input voltage range(30-400vdc)
6.Built-in anti-dusk kit for harsh environment
7.Smart battery charge design to optimize battery life
8.Meet the rich customize needs of customers
9.Compatibe with lithium battery
10.Solar energy is provided directly to the load first
ALLTOP ARCHITECTURE

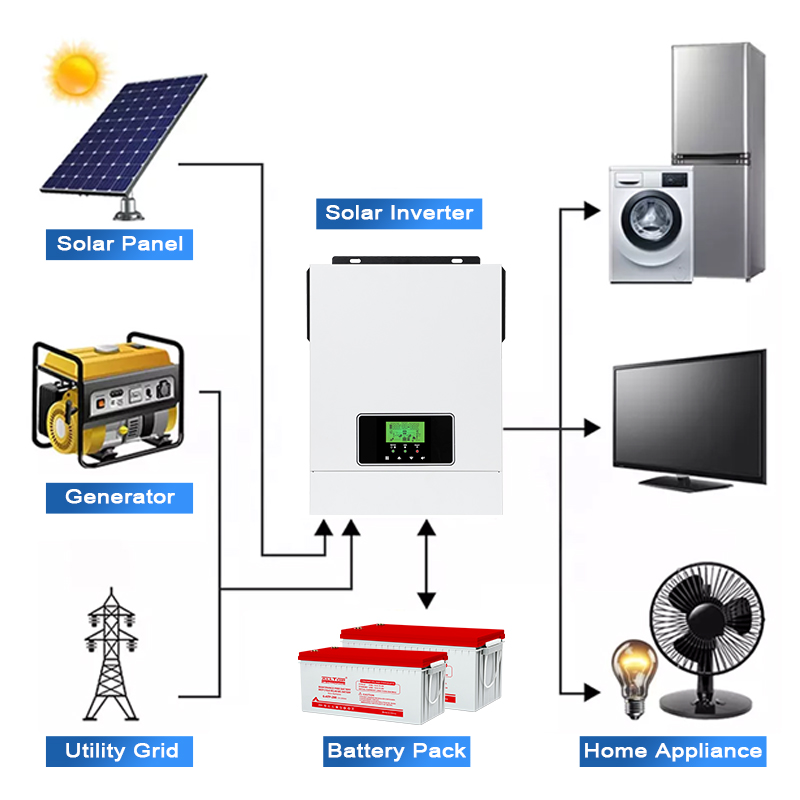

The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
1.Generator or Utility.
2.PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
ALLTOP INSTALLATION
Consider the following points before selecting where to install:
1.Do not mount the inverter on flammable construction materials.
2.Mount on a solid surface
3.Install this inverter at eye level in order to allow the LCD display to be read at all times.
4.For proper air circulation to dissipate heat, allow a clearance of approx. 20 cm to the side and approx. 50 cm above and below the unit.
5.The ambient temperature should be between 0C and 55C to ensure optimal operation.
6.The recommended installation position is to be adhered to the wall vertically.
7.Be sure to keep other objects and surfaces as shown in the diagram to guarantee sufficient heat dissipation and to have enough space for removing wires.
