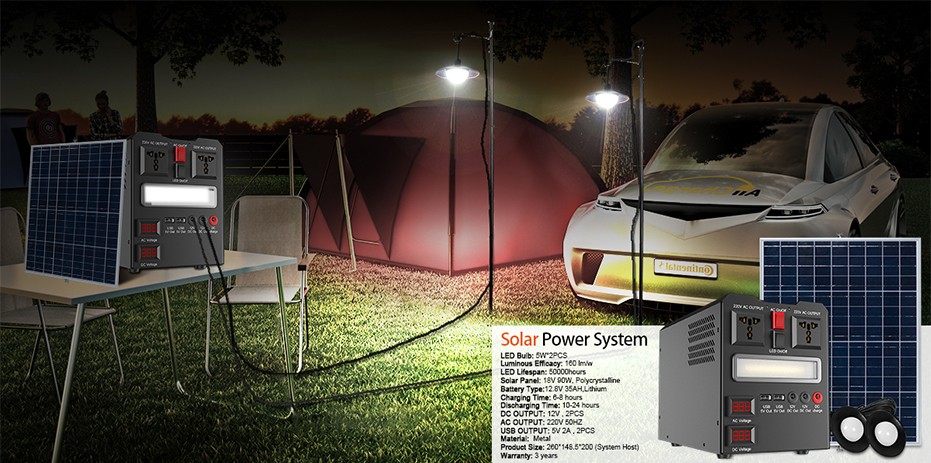

LED solar home system is an off-grid solar generator designed to provide stable and reliable power to homes and communities or areas without or even electricity without access to grid power.
The solar system is characterized by convenient movement, easy installation, and reliable performance, which is very suitable for situations requiring emergency power.
It’s a portable solar power system that is a reliable energy source for many applications such as lighting, radios, fans, TVs, computers, and refrigerators. The USB port is compatible with all 5V-USB charging devices. It can also be used as a backup power source in emergency situations.
The specification is below.
1.500W and 1000W for your option.
2. Large capacity LiFePO4 battery and 25 years life span solar panel.
3. The Luminous Efficacy is 160lm/W, and LED Lifespan is 50000 hours.
4. Upgraded high-capacity,365 days of range with recharge and discharge protection.
5. High-quality solar panel, up to 20% of conversion efficiency full charge in about 6-8 hours.
Welcome to send your inquiry to us.
Today, when low-carbon life and green environmental protection are advocated, solar energy is undoubtedly the most promising among many new energy sources. The usage of clean energy will bring more cleanliness and convenience to our living environment!
With the development of technology, many products are now becoming smaller and more portable. Solar power generation is a relatively energy-saving way of power generation in life. Nowadays, due to the maturity of technology, portable solar power generation came true now, and it is very easy to carry. This solves the problem of insufficient power supply in the past.
1. Components of the portable solar power system:
1) Solar panels
The solar panel is the core part of the solar power system, and it is also the most valuable part of the solar power system. Its function is to convert the sun’s radiant energy into electrical energy, send it to the battery for storage, or promote the load to work. It has monocrystalline silicon and polycrystalline silicon, in terms of shape, there are non-foldable and foldable styles for optional. The foldable type is easy to carry and the area of the placement is relatively small, but the price is relatively more expensive than the non-foldable type.
2) Controller
The role of the controller is to control the working state of the entire system and to protect the battery from overcharging and over-discharging.
3) Battery
In order to be portable, the system uses lithium batteries. The advantages of lithium batteries are high storage energy density; long life span; low self-discharge rate; light in weight, high and low-temperature adaptability, and can be used in -20℃-60℃ environments. The lithium battery is green and environmentally friendly, and it does not contain or produce any harmful heavy metal elements and substances such as lead, mercury, and cadmium, regardless of production, use, or scrap. Its function is to store the electric energy which converts by the solar cell during the day and can power supply to the load at any time.
4)
Inverter
In many cases, we use 220VAC and 110VAC power supplies. The direct output of solar energy is generally 12VDC, 24VDC, and 48VDC. In order to power supply 220VAC appliances, a DC-AC inverter is required.
2. Feature:
DQ 1413 series from ALLTOP
·500W or 1000W for optional.
·With an HD display, shows the remaining power and usage time
·With high-brightness LED light, can be used as a table lamp

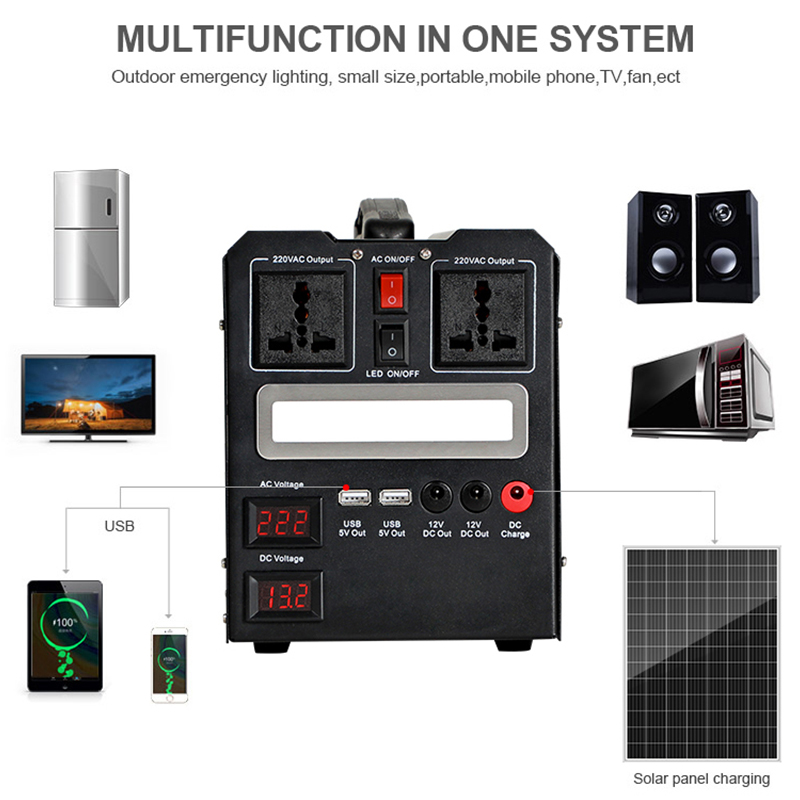

·Multifunctional interface：12DC output port, which can be a power supply for 12DC led lamp, USB port charge for a 5V device, such as charging for a mobile phone. AC output is the power supply for 220V equipment, such as laptops, cookers, and coffee machines.
·Safety in use: 220V output socket, has isolated treatment – with plastic protective door to prevent electric shock
·Two charging ways: this solar power system can be charged by solar panel or by power adapter.
·Can be used indoors or outdoors.
3. Applications:
This portable solar system is light and small, beautiful appearance, is portable in design, is easy to carry, multifunctional, and widely used in a variety of fields, such as outdoor office, travel camping, field photography, outdoor construction, backup power supply, emergency rescue and so on
If want to know more design about portable solar power system, feel free to contact us – ALLTOP,
we worked in the solar industry for more than 13 years, we have a strong engineering team, and our engineering team constantly develops new products and improves product performance to meet the needs of customers and the market, and also provides technical support for our customers’ projects.
With us, you will feel that ALLTOP is more committed to your business support and success than others.
